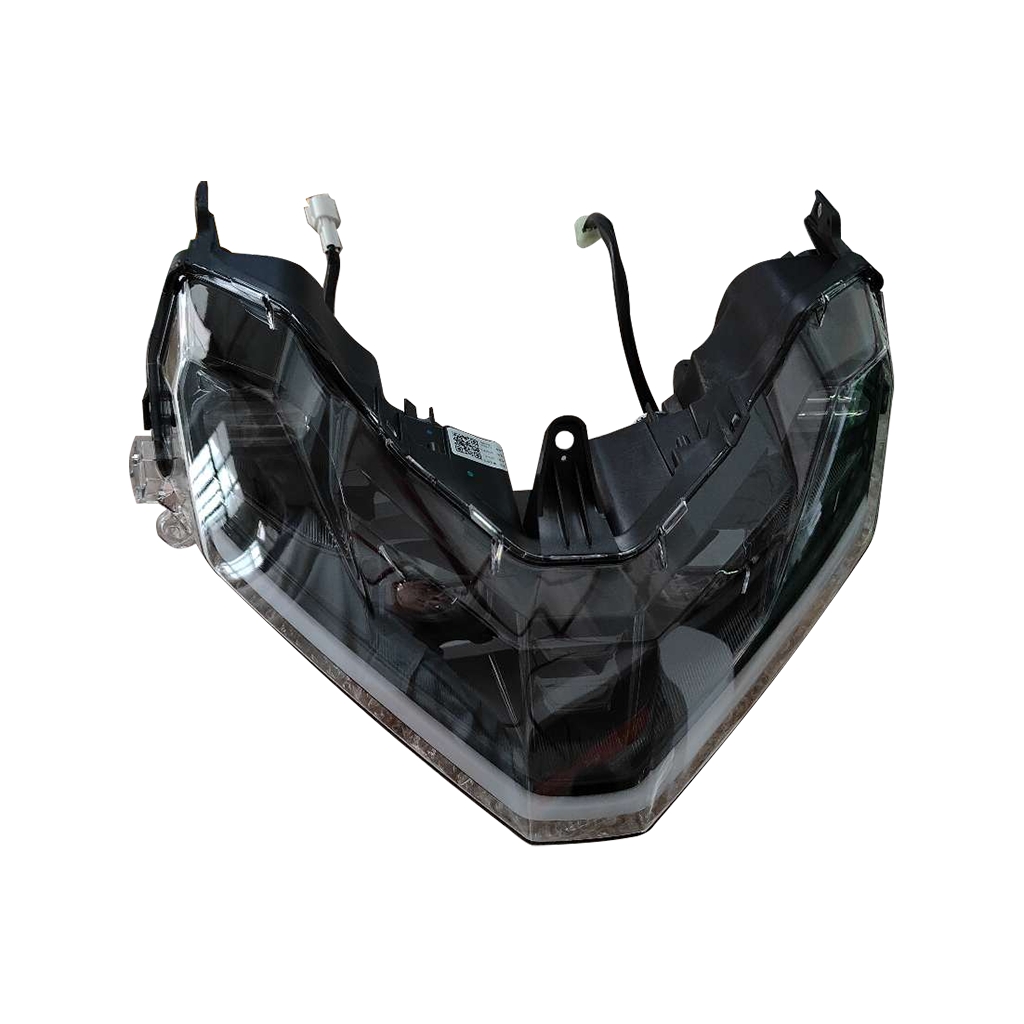

1. A03-01 headlight assembly
|
|
|
|
|
|
|
|

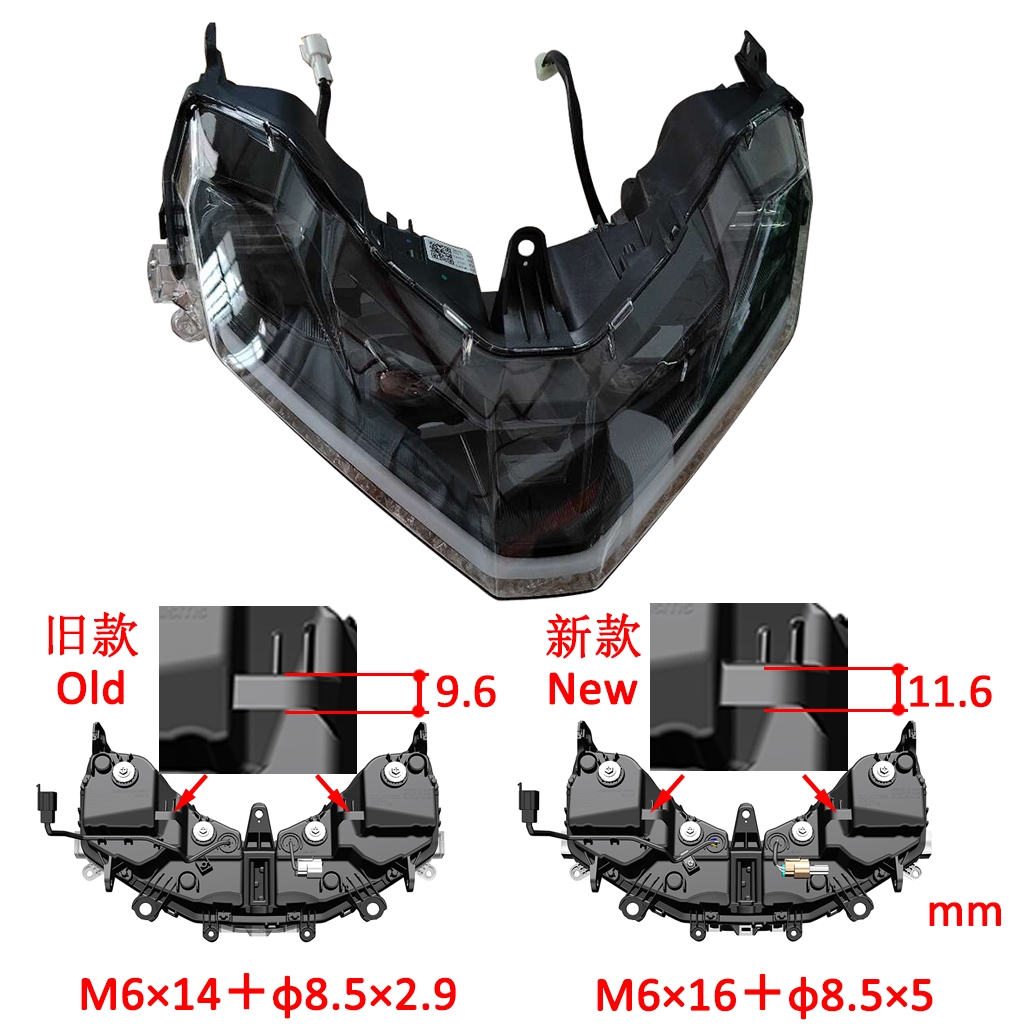

2. Inner plum blossom shaft shoulder screw M6×16+φ8.5×5 (carbon steel-environmental color Zinc)
|
|
|
|
|
|
|
|
3. Inner plum blossom shaft shoulder screw M6×14+φ8.5×2.9 (carbon steel-environmental color Zinc)
|
|
|
|
|
|
|
|
4. ZT250-S Expansion nail
|
|
|
|
|
|
|
|
5. ZT250-S Side cover round rubber
|
|
|
|
|
|
|
|
6. M5×12 Round-headed cross-cut tail self-tapping screws
|
|
|
|
|
|
|
|

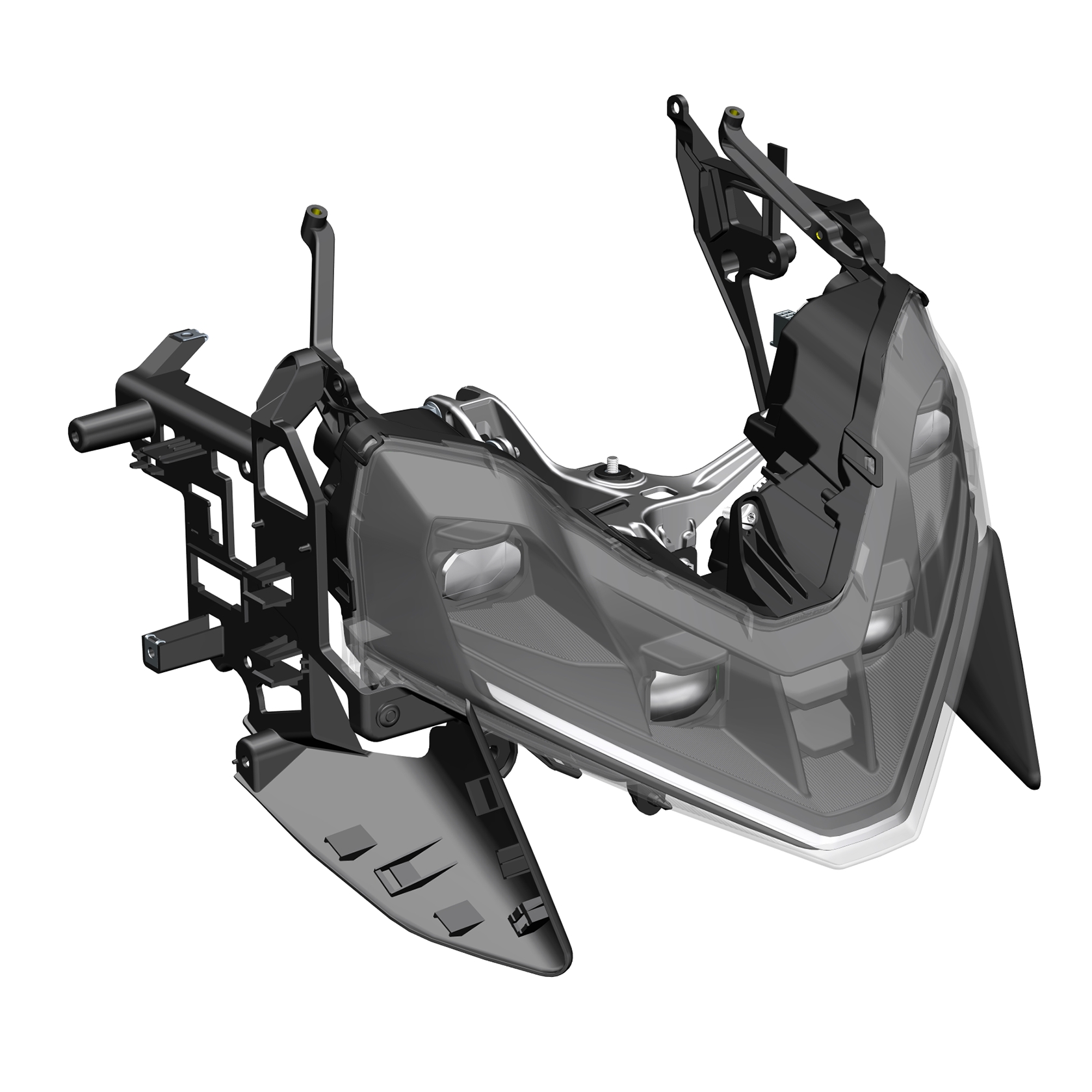

7. A03-01 head bracket assembly
|
|
|
|
|
|
|
|
8. ZT250-S Flanging bushing buffer
|
|
|
|
|
|
|
|
9. Non standard plum blossom groove with column pan head bolt M8 × 1.25 × 40- 25 (grade 10.9)
|
|
|
|
|
|
|
|
10. GB6187.1 M8 (Dacromet)
|
|
|
|
|
|
|
|
11. Hexagonal small flange internal plum blossom bolt M6×16 (9.8/environmental color)
|
|
|
|
|
|
|
|
12. ZT250-S flanging sleeve(φ6.4×φ9×6＋φ20×2)
|
|
|
|
|
|
|
|
13. Hexagonal small flange internal plum blossom bolt M6×10 (9.8/environmental color)
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

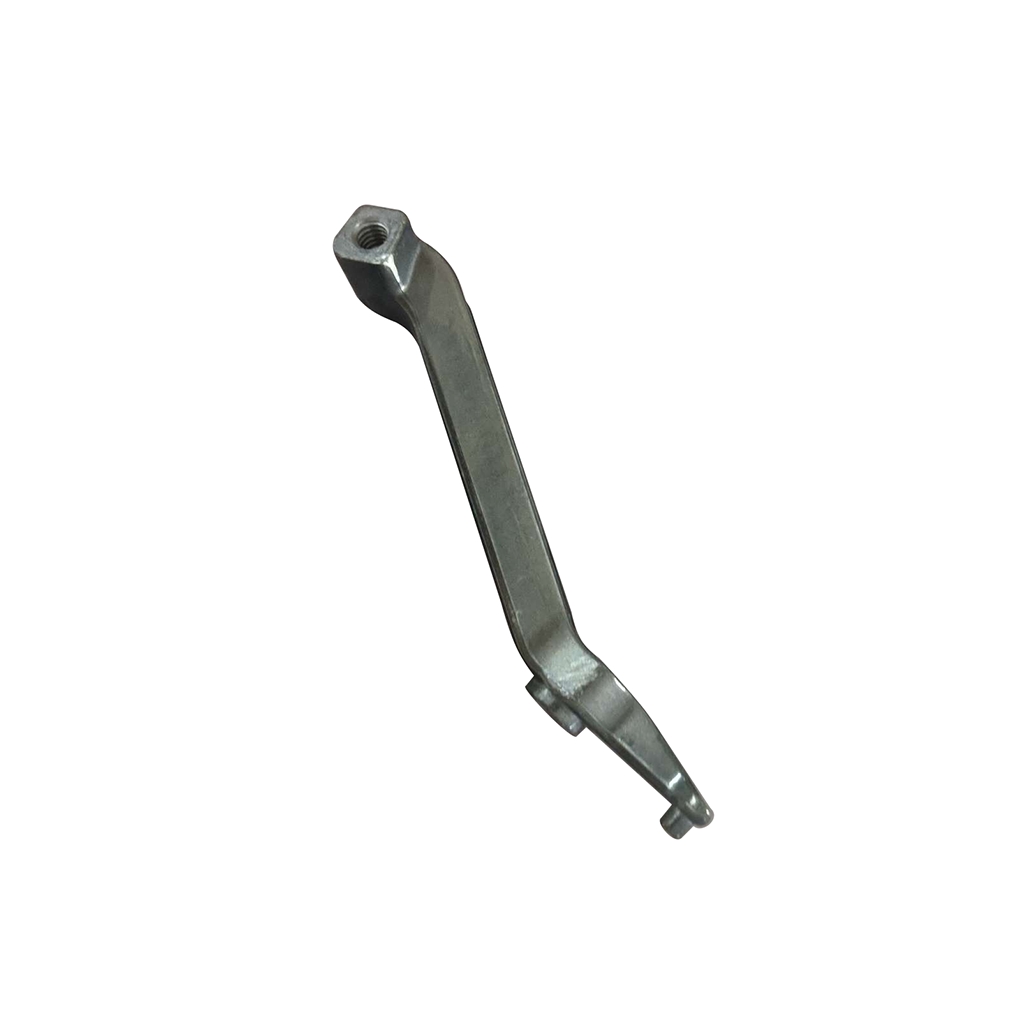

15. A03-01 Left Side Lamp Support
|
|
|
|
|
|
|
|
16. A03-01 Right Side Lamp Support
|
|
|
|
|
|
|
|

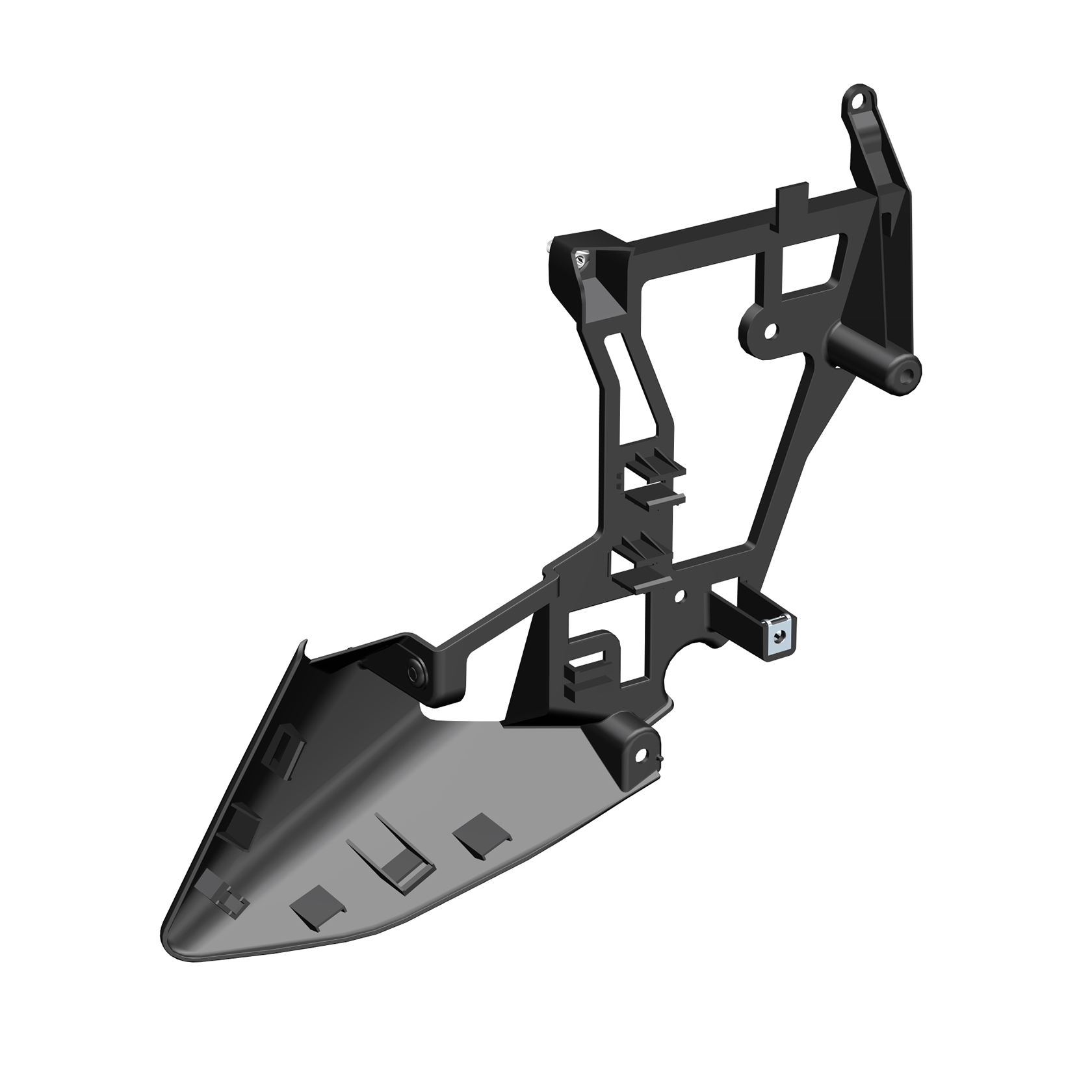

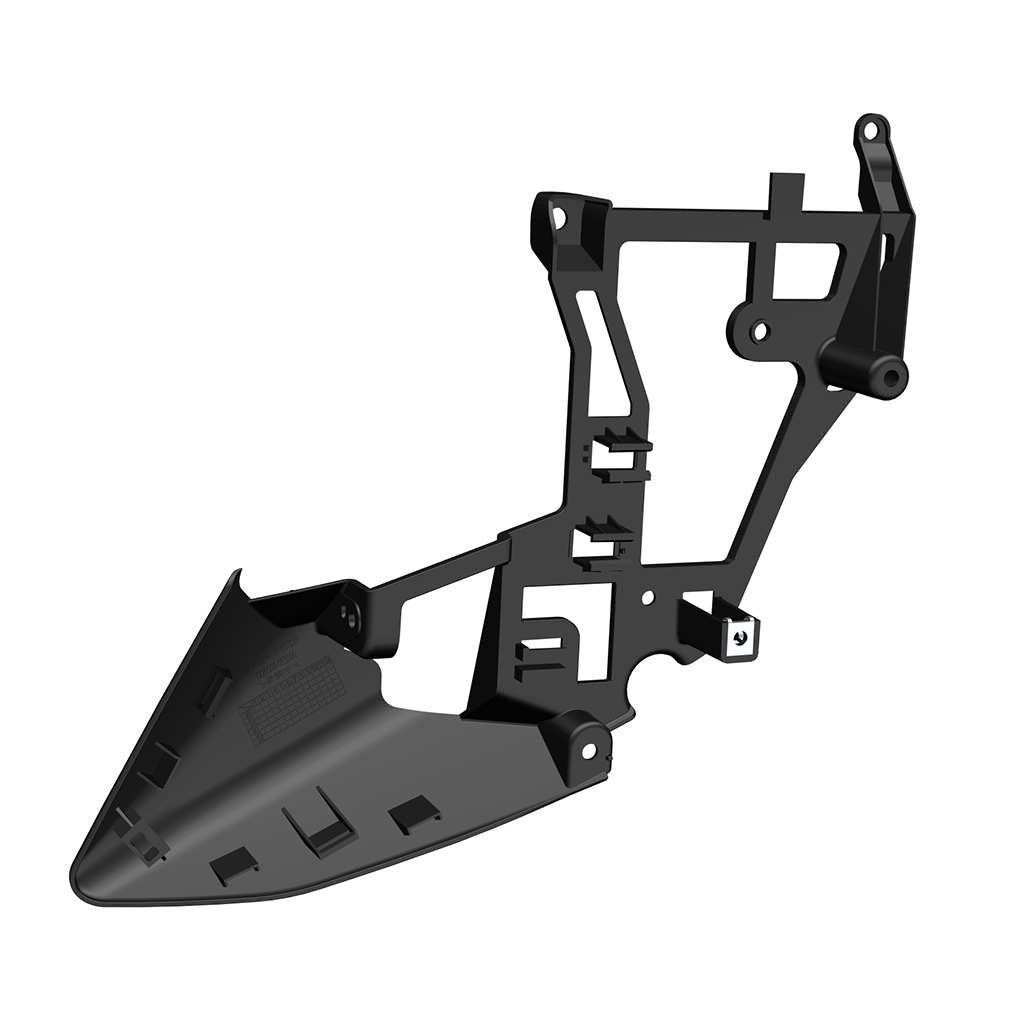

17. A03-01 Head Left Panel Liner Assembly
|
|
|
|
|
|
|
|

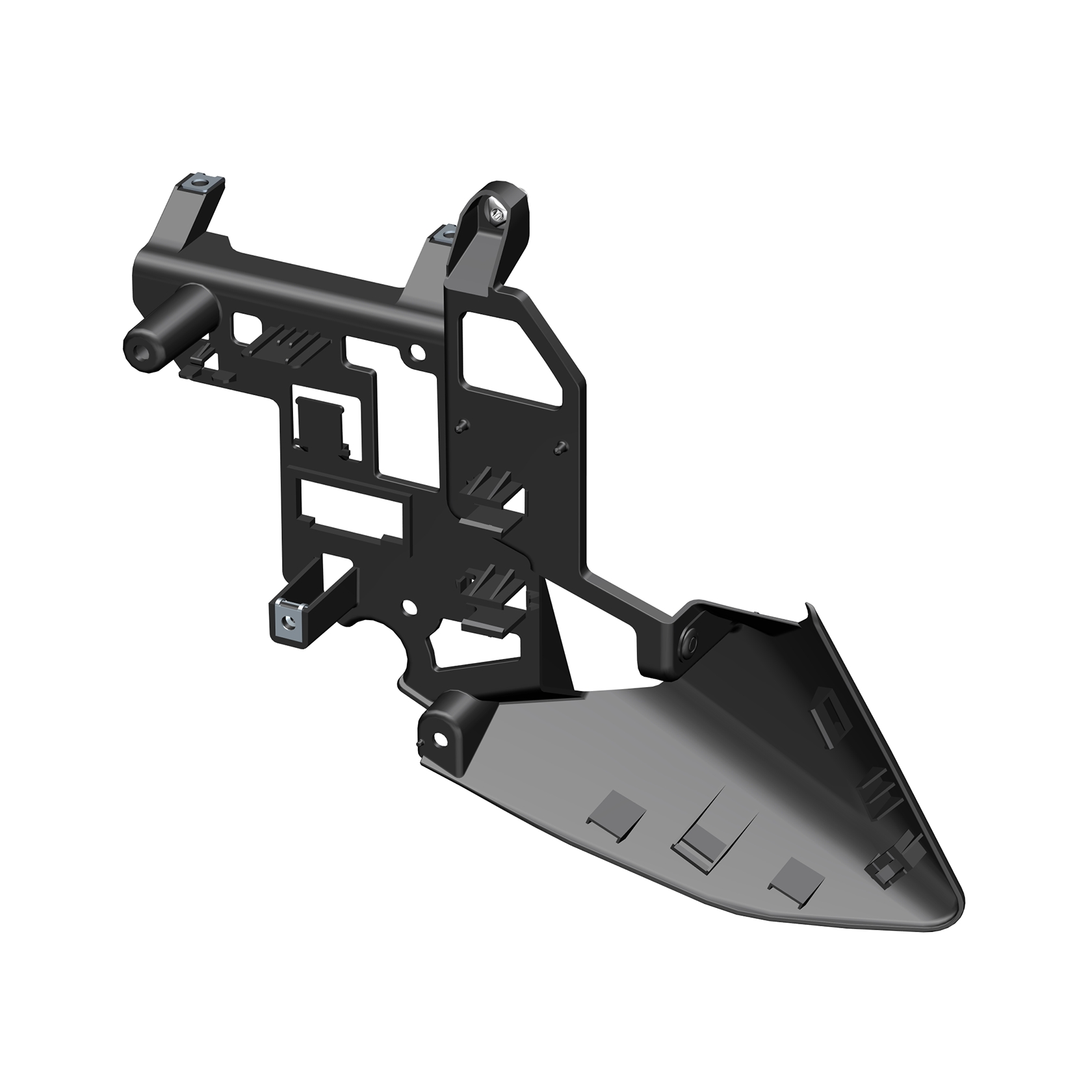

18. A03-01 right head panel liner assembly
|
|
|
|
|
|
|
|
19. ST4.8 self-tapping clip (environmental color)
|
|
|
|
|
|
|
|
20. Plywood M6×11×15(zinc-nickel)
|
|
|
|
|
|
|
|
21. 3M sponge pad (50×30×2)
|
|
|
|
|
|
|
|
