1. ZT703-F battery storage cover
|
|
|
|
|
2. ZT310-T storage box cover rotating shaft limit circlip
|
|
|
|
|
|
|
|
|
|
4. Inner plum blossom shaft shoulder screw M6×14+diameter 8.5×2.9 (304 stainless steel)
|
|
|
|
|
5. ZT703-F battery compartment electrical device rear bracket
|
|
|
|
|
6. Non standard internal plum blossom bolt M6×16 (304 stainless steel)
|
|
|
|
|
7. ZT703-F vice frame after-sales assembly
|
|
|
|
|
8. ZT310 Electric seat lock
|
|
|
|
|

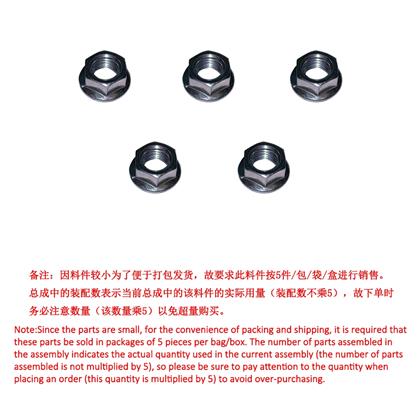

9. GB6177.1M10×1.25 (environmental color)
|
|
|
|
|
10. Non standard plum blossom groove with column pan head bolt M10 × 1.25 × 75 - 55 (grade 10.9)
|
|
|
|
|
11. Non standard plum blossom groove with column pan head bolt M10 × 1.25 × 60 - 45 (grade 10.9)
|
|
|
|
|
12. ZT703-F battery compartment electrical device front bracket
|
|
|
|
|
13. ZT368 lithium battery(6Ah)
|
|
|
|
|
|
|
|
|
|
15. ZT703-F lithium battery strap
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
18. ZT703-F battery compartment electrical device cover
|
|
|
|
|
19. GB5789M6×35 (environmental color)
|
|
|
|
|
20. Non standard internal plum blossom bolt M6×12 (304 stainless steel)
|
|
|
|
|
21. ZT703-F Battery Storage Cover Pivot
|
|
|
|
|
22. Flanging bushing φ6.2×φ8.4×3.5+φ14×1.5
|
|
|
|
|
23. Buffer rubber of flanging bushing (φ8.5×φ14×1)
|
|
|
|
|
24. Third-generation PKE assembly (24 version/CR2032)
|
|
|
|
|
25. GB16674 M6×16 Hexagon flange bolts (9.8 grade/environmental color Zinc)
|
|
|
|
|
26. ZT703-F PKE main machine fixing bracket
|
|
|
|
|
27. Plywood M6×11×15(color Zinc)
|
|
|
|
|
|
|
|
|
|
29. ZT703-F muffler side bracket glue stopper
|
|
|
|
|
30. ZT703-F muffler side bracket
|
|
|
|
|
31. ZT703-F Fuel Tank Rear Mounting Bracket
|
|
|
|
|
32. ZT250-S fuel tank gasket
|
|
|
|
|
33. ZT250-R fuel tank flat pad φ9×φ37.5×2 (environmental color)
|
|
|
|
|
34. ZT703-F Fuel Tank Rear Mounting Bracket Lamination
|
|
|
|
|
35. Non standard plum blossom groove with column pan head bolt M8 × 1.25 × 25 (grade 10.9)
|
|
|
|
|
36. ZT703-F Battery Hook Bracket
|
|
|
|
|
|
|
|
|
|
38. ZT703-F PKE mounting bushing
|
|
|
|
|
39. ZT310 Induction Key (Bracelet Edition-enlarge battery)
|
|
|
|
|
40. ZT310 induction key rubber ring
|
|
|
|
|
41. Bracelet key battery cover (enlarge battery)
|
|
|
|
|
42. Button battery (Camelion CR2032)
|
|
|
|
|
43. Flat Head Vertical Grain M6×18 Rivet Nut (Stainless Steel)
|
|
|
|
|
44. ZT703-F battery compartment battery pad
|
|
|
|
|
45. ZT368 Battery Charger
|
|
|
|
|
|
|
|
|
|
