1. Inner plum blossom shaft shoulder screw M6×14+ φ8.5×2.9 (304 stainless steel)
|
|
|
|
|
|
|
|
2. Inner plum blossom shaft shoulder screw M6×16+diameter 8.5×5 (304 stainless steel)
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
4. ZT368T-G Small Windscreen
|
|
|
|
|
|
|
|
5. Buffer rubber of flanging bushing (φ8.5×φ14×1)
|
|
|
|
|
|
|
|
6. Nylon gasket (φ9xφ16x1)
|
|
|
|
|
|
|
|
7. ZT368T-G Windshield Glass Nut (M6)
|
|
|
|
|
|
|
|
8. Non-standard bolt M6×25 (environmental color/10.9 grade)
|
|
|
|
|
|
|
|
9. ZT368T-G windshield bracket
|
|
|
|
|
|
|
|
10. ZT368T－G windshield swing arm bushing
|
|
|
|
|
|
|
|

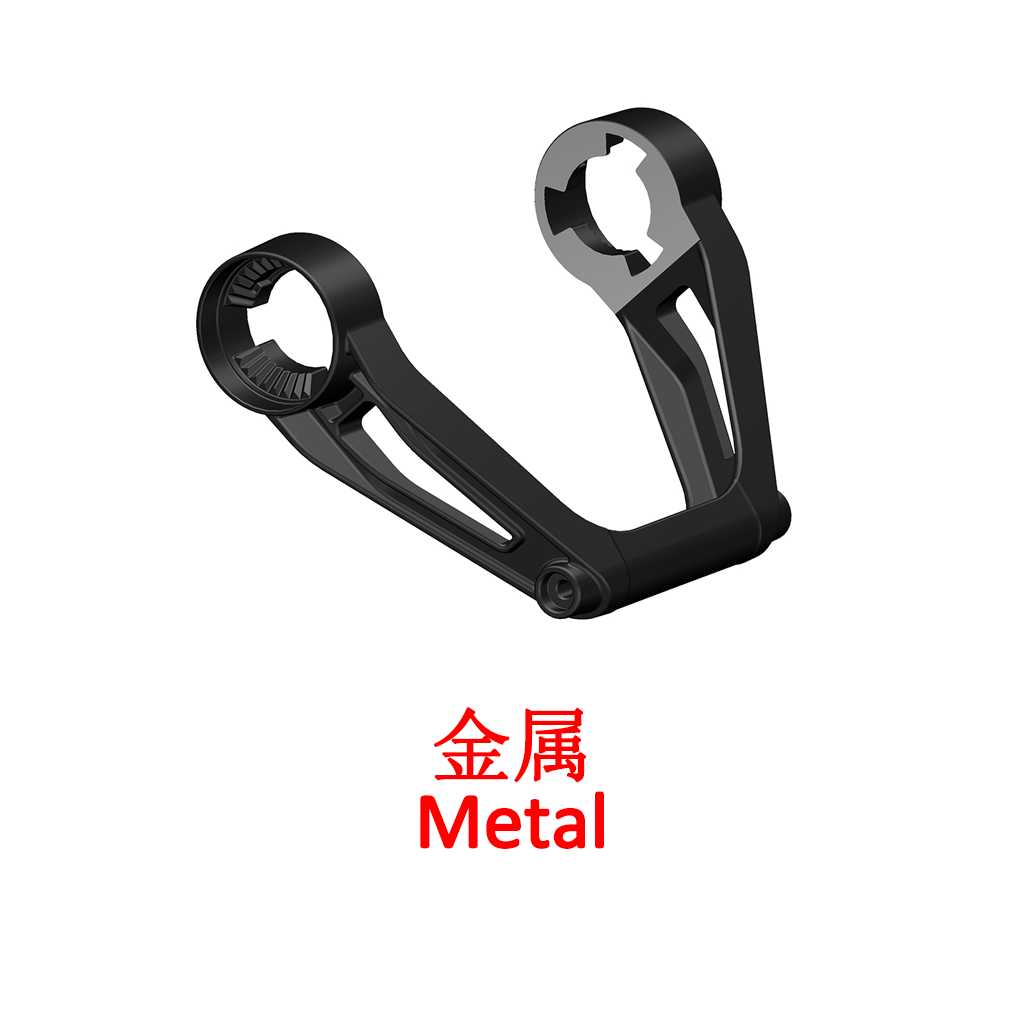

11. ZT368T-G Windshield Upper Swing Arm (B)
|
|
|
|
|
|
|
|
12. ZT368T-G windshield upper swing arm
|
|
|
|
|
|
|
|
13. ZT368T-G Windshield Lower Swing Arm (B)
|
|
|
|
|
|
|
|
14. ZT368T-G Windshield locking handle
|
|
|
|
|
|
|
|
15. ZT368T－G windshield preload spring
|
|
|
|
|
|
|
|
16. ZT368T-G elastic crankset
|
|
|
|
|
|
|
|
17. Non-standard hexagon socket bolt M6×13-φ8×20 (environmental color)
|
|
|
|
|
|
|
|
18. Aluminum alloy bushing φ8.5× φ12×5.5
|
|
|
|
|
|
|
|
19. GB70.1 M4x12 (304 stainless steel)
|
|
|
|
|
|
|
|
20. ZT368T-G Elastic Disc Limiting Set (Ⅱ)
|
|
|
|
|
|
|
|

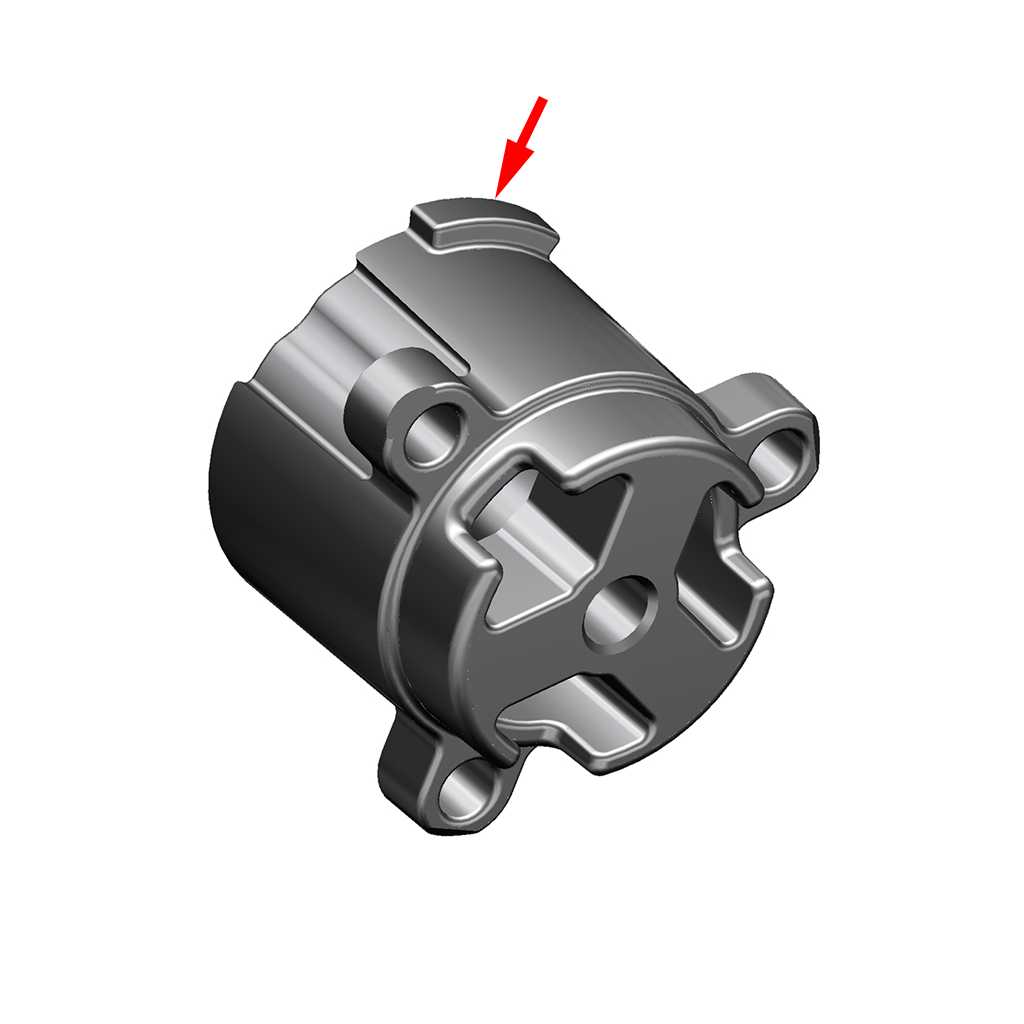

21. ZT368T-G elastic crankset limit sleeve
|
|
|
|
|
|
|
|
22. Single-sided 3M adhesive rubber pad (φ10×φ20×2)
|
|
|
|
|
|
|
|
23. ZT368T-G Windshield and Instrument Bracket (B)
|
|
|
|
|
|
|
|
24. ZT368T－G Universal TFT Instrument Panel (8-inch/DVR)
|
|
|
|
|
|
|
|

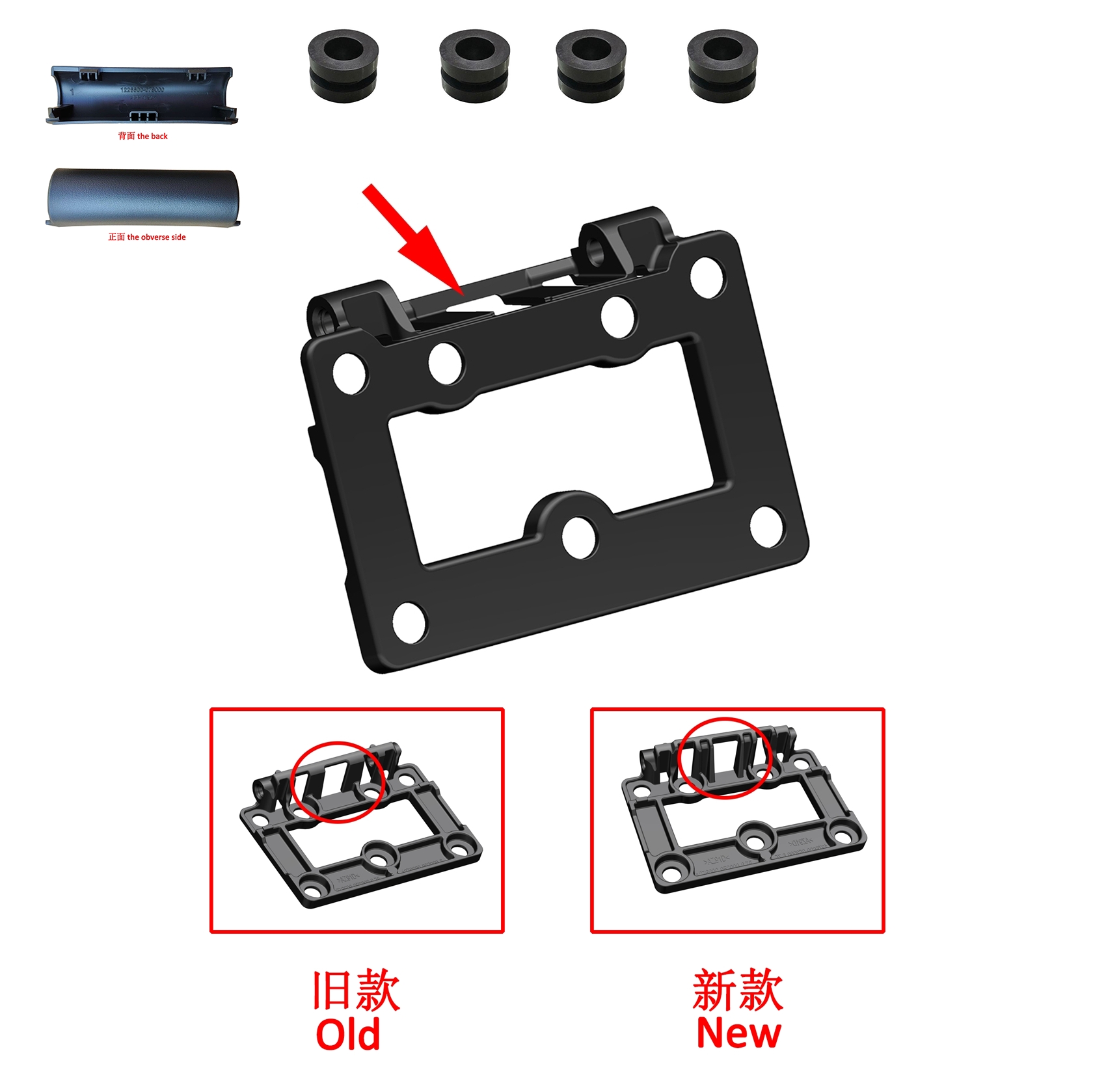

25. ZT368T-G instrument fixed base plate (8 inches)
|
|
|
|
|
|
|
|
26. ZT310TFT instrumentation rubber cushion
|
|
|
|
|
|
|
|
27. Non-standard gasket φ16xφ6x1.5 (environmental color Zinc)
|
|
|
|
|
|
|
|
28. GB6170M6 (environmental color)
|
|
|
|
|
|
|
|
29. ZT368T－G Instrument left decorative cover
|
|
|
|
|
|
|
|
30. ZT368T－G Instrument right decorative cover
|
|
|
|
|
|
|
|
31. GB93 φ8 (environmental color)
|
|
|
|
|
|
|
|
32. GB2671.2M8×50－30 (environmentally color)
|
|
|
|
|
|
|
|
33. ZT368T－G instrument upper decorative cover
|
|
|
|
|
|
|
|
34. ZT368T－G Instrument middle decorative cover
|
|
|
|
|
|
|
|
35. M6×22 Hex flang bolt thread (8.8 garde/environmental color Zinc)
|
|
|
|
|
|
|
|
36. Non standard internal plum blossom bolt M6×12 (304 stainless steel)
|
|
|
|
|
|
|
|
37. GB16674 M6×16 Hexagon flange bolts (9.8 grade/environmental color Zinc)
|
|
|
|
|
|
|
|
